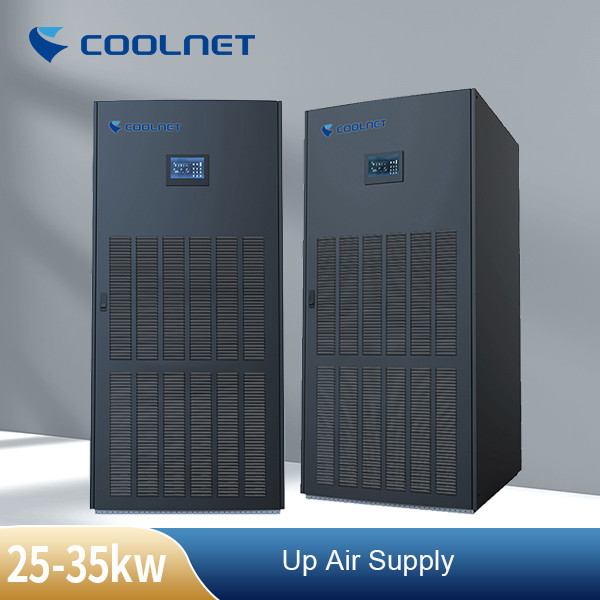

20-35KW PACU Computer Room IT Equipment Cooling Precision Air Conditioning Unit

Name: 2035KW PACU Computer Room IT Equipment Cooling Precision Air Conditioning Unit
Brand: Coolnet
Price: 1 USD

Quality 20-35KW PACU Computer Room IT Equipment Cooling Precision Air Conditioning Unit for sale

Brand Name : Coolnet

Model Number : CYA,M26-M40

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1

Price : to be Negotiated

Payment Terms : T/T, L/C

Supply Ability : 300Unit/Month

Delivery Time : 25-30Working Days

Packaging Details : Standard Export Package

Capacity : 20-35W

Type : Air cooled unit R410A

After-sales service provided : Engineers available to service machinery overseas

Color : Black/Grey/White/Other custom colors

Type of Fan : Axial Fan,Direct driven or belt driven,direct driven/belt driven/AC/EC plug fan,AC direct drive fan

Product Power : 3N-380V-50Hz,220v/50hz/60hz

Contact Now

20-35KW PACU Computer Room IT Equipment Cooling Precision Air Conditioning Unit

Production Introduction

The speedly development of mobile communication and Internet network has resulted in highly complex and compact design in the electronic systems of Internet data centers and Industrial automatic control rooms which require outstanding controlling of operation environment, such as, special temperature and humidity and high cleanliness. Cool-smart series are made for focusing on providing a constant temperature and humidity environment for the machine, ensure the efficient operation of the machine throughout the year, and solve the worries of the factory.

Benifits

20-35KW PACU Computer Room IT Equipment Cooling Precision Air Conditioning Unit

Technical Features

R410AHigh-efficiency Comprossor

• Adopt environmentally friendly refrigerant R410A, high performance

• The compressor has strong ability to withstand impurities and liquid shock

• Powerful built-in protection functions, including built-in motor disconnection protection (temperature and current), built-in pressure relief valve, built-in exhaust temperature protection, built-in anti-stop reverse stop valve, etc.

Condenser stepless speed regulation

• Stepless speed regulation of condenser

• Energy saving

• Anti-corrosion and long-life design

• The condenser is easy to install and can be installed on the roof or foundation platform

• Small size and light weight

• Ultra low noise

Large area hydrophilic evaporator

• Large area

• 25% larger than the comfort air conditioner in the same power section

• Large pipe diameter design, less pressure loss, high efficiency

• Internal thread

• Hydrophilic membrane

• High-efficiency heat exchange aluminum fins

• High withstand voltage design

Applications

• It Equipment Room

• Small Dat A Center

• Industrial Clean Room

• Constant Temperature And Humidity Process Workshop

• Laboratory

• Electric Power Equipment Room

• Railway Subway Machine Room

• Base Station And Small Telecom Switch Room

• Medium&small Telecom Switch Room

Technical Parameter

Model		M04	M06	M08	M13	M16	M20
Power Supply		220V1Ph-50Hz		380V3Ph-50Hz
Air discharge		Up Front/Down
Technical Data Sheet
AC Fan	Total cooling capacity-KW	4.2	6.4	7.5	12.5	16.8	20.2
	Sensible cooling capacity-KW	3.9	5.8	6.9	11.3	15.3	18.3
	Unit FLA-A(heating, humidifying type)	20.0	25.0	16.8	22.0	23.5	28.6
Compressor Quantity		1
Fan Quantity		1
Air Volume-m3/h		1600	1900	2300	3600	5100	6500
Heater Capacity-KW		3.0	3.0	6.0	6.0	6.0	6.0
Humidification-kg/h		3	3	3	3	6	6
Power of humidifier-KW		2.3	2.3	2.3	2.3	4.5	4.5
Outdoor Condenser
Model		SCA020	SCA020	SCA030	SCA030	SCA050	SCA050
Standard unit operating temperature range-℃		-15-45℃
Low Temperature Components Operating Temperature Range-℃		-40-45℃
